Alluxa窄带滤光片【多朴光学滤光片厂家】

Alluxa高性能滤光片以先进的设计工艺和镀膜过程控制,使Alluxa滤光片具有行业内最高的透过率,极高的截至深度和波长精确性,其中通过SIRRUS离子束沉积硬镀膜技术,也使得Alluxa滤光片具有使用寿命长,高损伤阈值,以及极高的批次稳定性等特点,并已经广泛应用于生物荧光系统、拉曼系统、量子、雷达通讯等精密光学系统中.

Alluxa除了丰富的标准品,同时提供定制服务,并且定制成本在行业内有相当大的竞争力.

Alluxa窄带滤光片Ultra

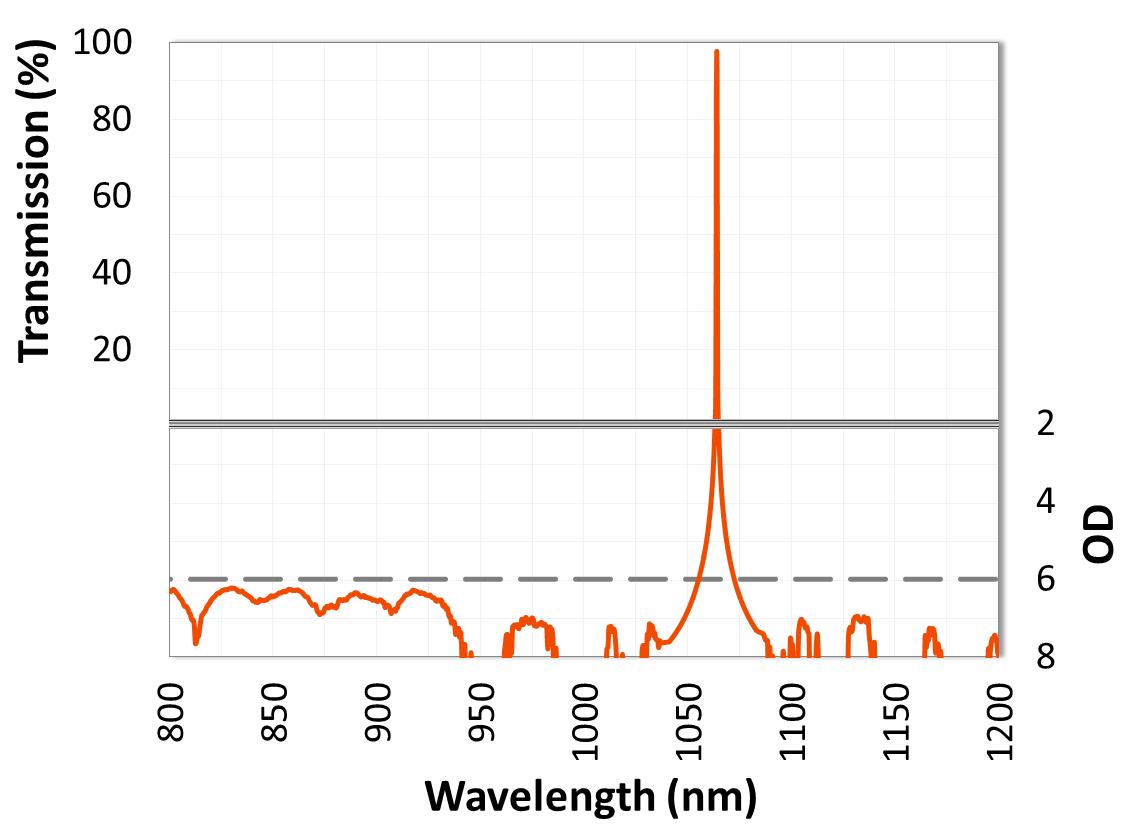

Figure 1.Ultra-narrowband filter with OD6 blocking for use with the 1064md:YAG laser.

凭借业界*窄的带宽和zui高的透过率,Alluxa的薄膜超窄带带通滤光片将优化基于激光的系统的性能。

超窄滤光片非常适合用作激光线,激光清除或激光激发滤光片,适用于荧光显微镜,流式细胞仪和DNA测序等应用。它们对激光损伤也很有抵抗力,可确保它们长时间保持高水平的性能。

应用:LIDAR,拉曼光谱, 及需要净化激光器的精密光学系统.

特点:

精密控制用的Flat-top

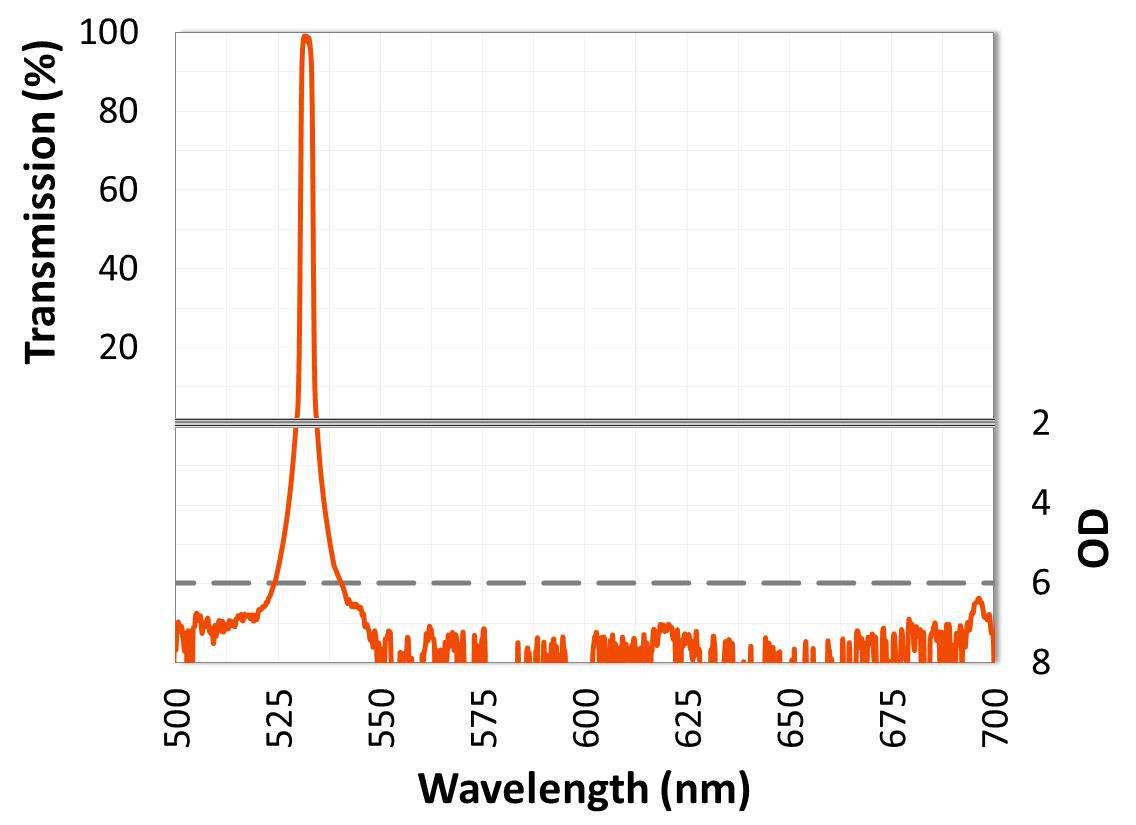

Figure 2. Flat-top ultra-narrow bandpass filter with steep edges, deep blocking, and a square spectral shape.

Flat-top,超窄的带通滤波器特别设计,在整个通带中有极陡的边缘和高透过率。这个正方形的光谱形状可以达到0.1m的带宽。Flat-top窄带滤波器是理想的激光雷达、拉曼光谱和其他需要使用精密激光发射滤波器或激光清理过滤器的应用。

661.5-1 OD5 Ultraarrow Bandpass

Ultra-narrowband interference filter centered at 661.5m with a 1m FWHM and wide-range out-of-band OD5 blocking. Alluxa ultra-narrow bandpass filters have thearrowest bandwidths and highest transmission currently available. All Alluxa filters are hard-coated, highly durable, and resistant to laser damage.

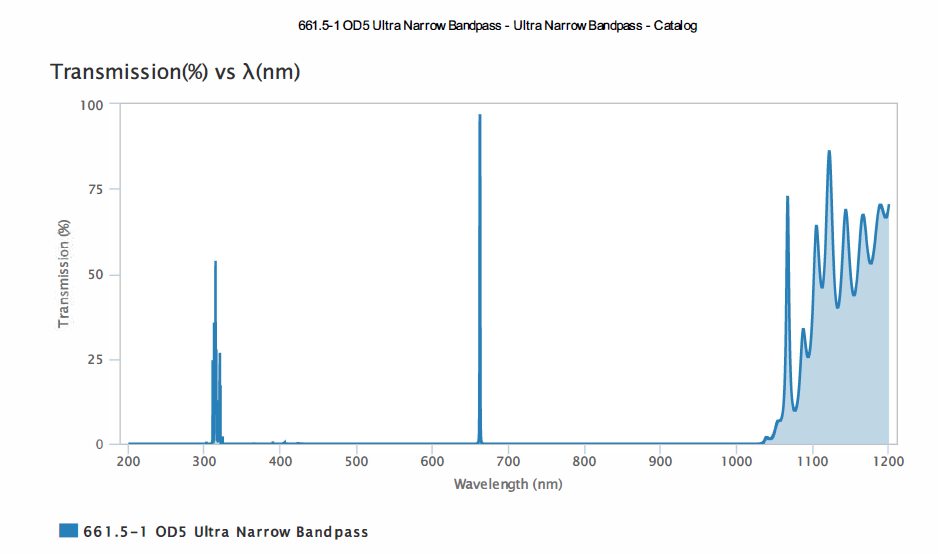

透过率:

OD值:

1650.96-0.8 OD4 Ultraarrow Bandpass

Ultraarrow filters bringew levels of performance to filters with veryarrow bandwidth responses. Typically fully blocked to OD4 or OD6 and 3m wide at FWHM, Alluxa Ultraarrow Filters are uniquely steep and accurate. All Alluxa Ultraarrow filters are fabricated with a proprietary durable, hard coating process. Even veryarrow ( 0.5m at FWHM ) Ultraarrow filters typically have transmission values 90%.

Angle of Incidence

0 Degrees

Center Wavelength

1650.96mominal

FWHM

1.0m

Transmission Band(s)?

1650.96m 90% T Absolute

Blocking Level

OD4

Blocking Range(s)*

OD4: 1664 to 1800m, 300 to 1638m

Filter Desig

Multi-Cavity

Substrate Type

Fused Silica

Dimensions

25.3 mm Diameter

Filter Thickness

2.0 mm

Assembly Type

Anodized Aluminum Ring

Assembly Thickness

5.0 mm

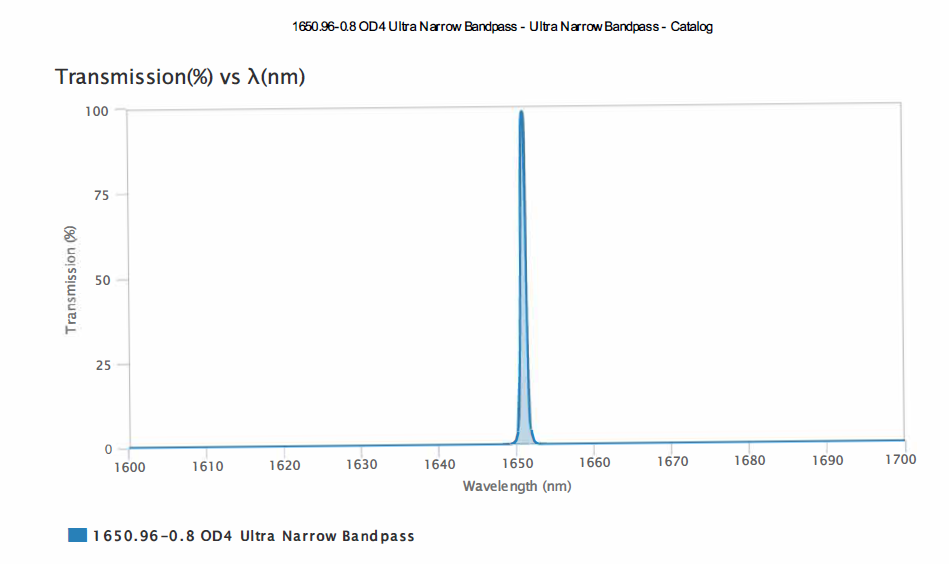

透过率:

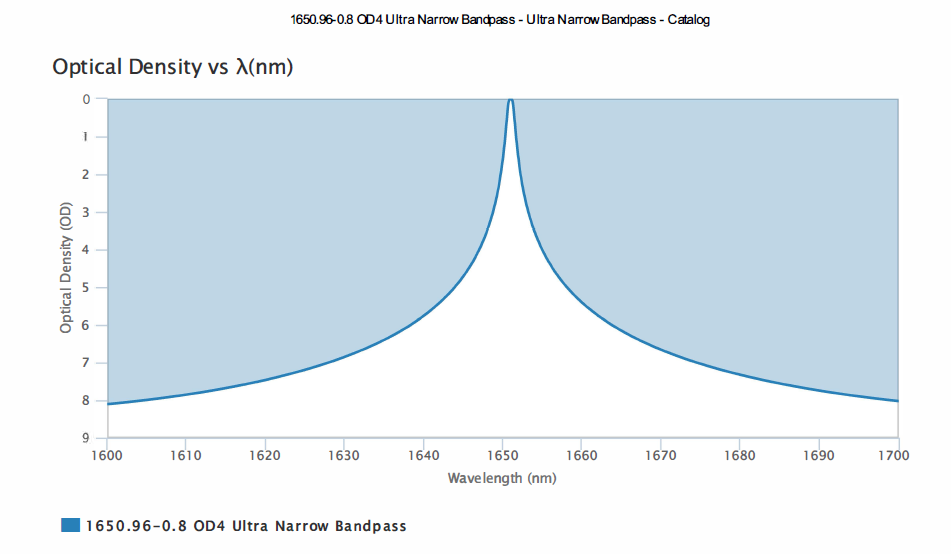

OD值:
